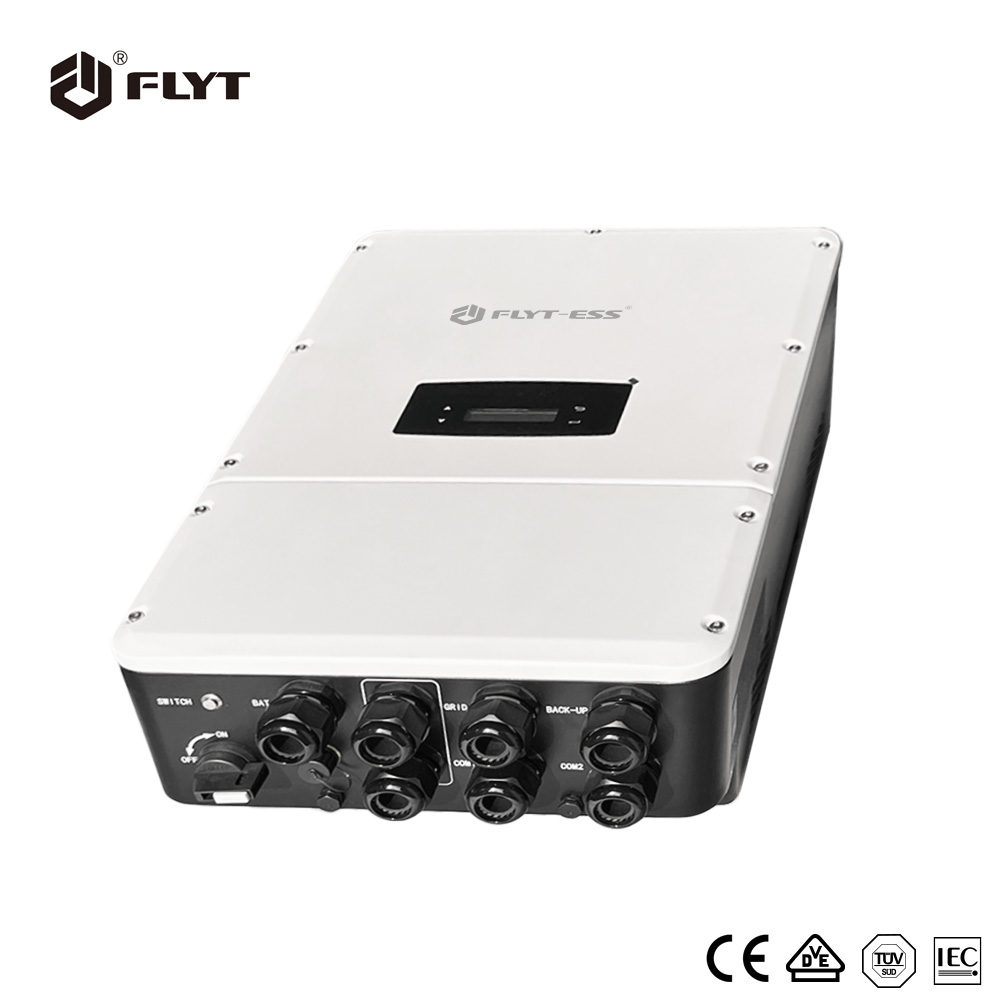

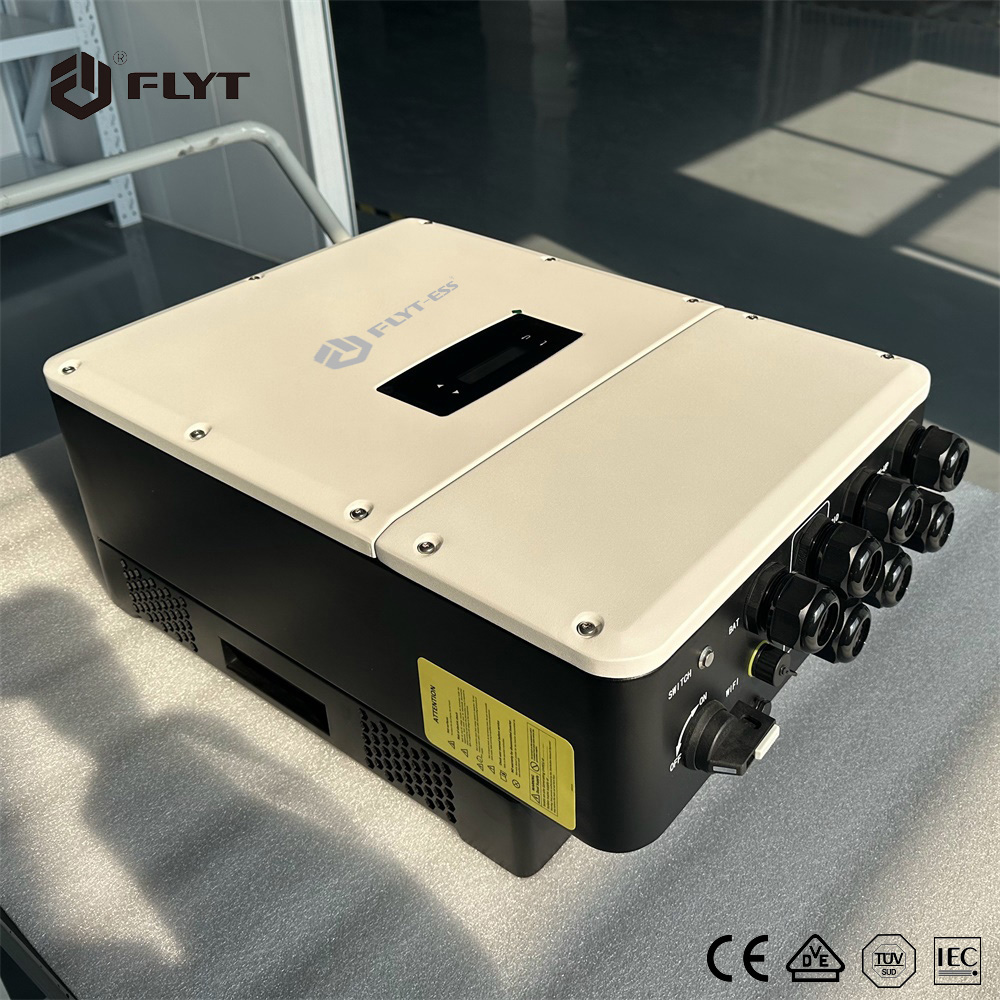

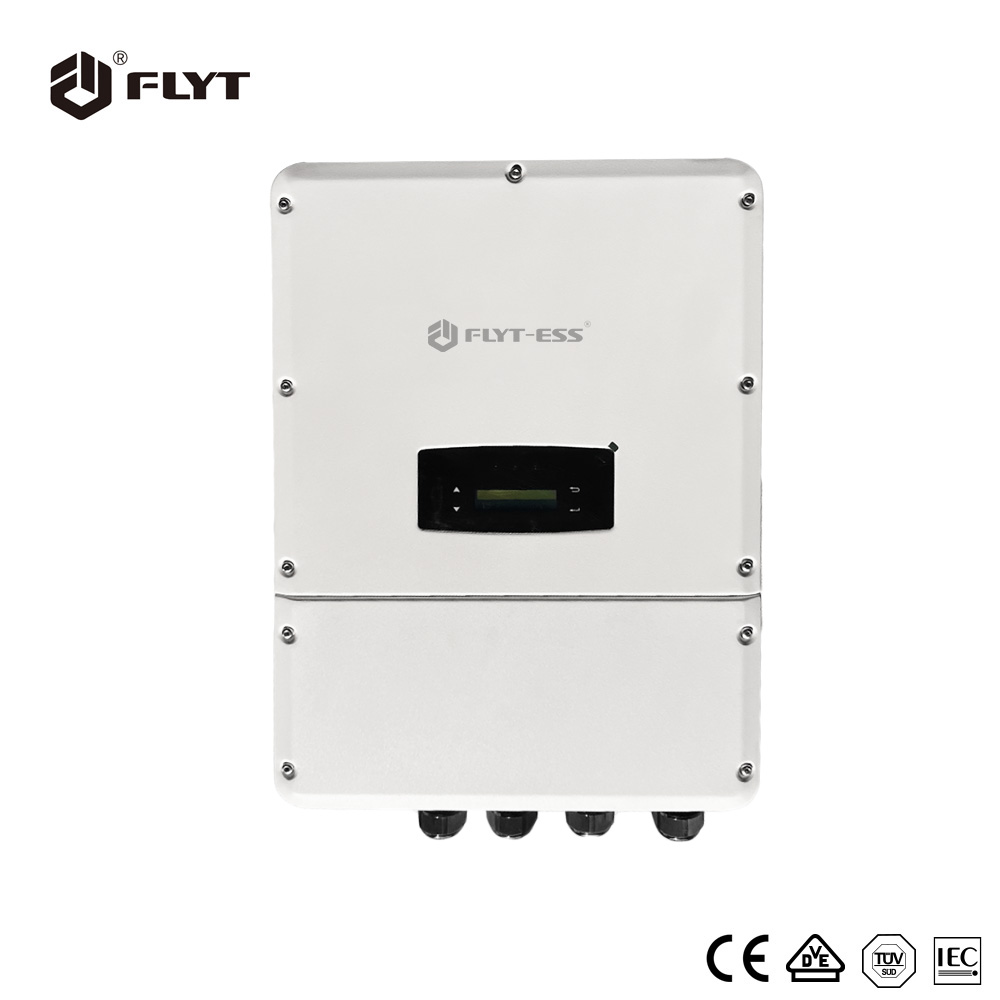

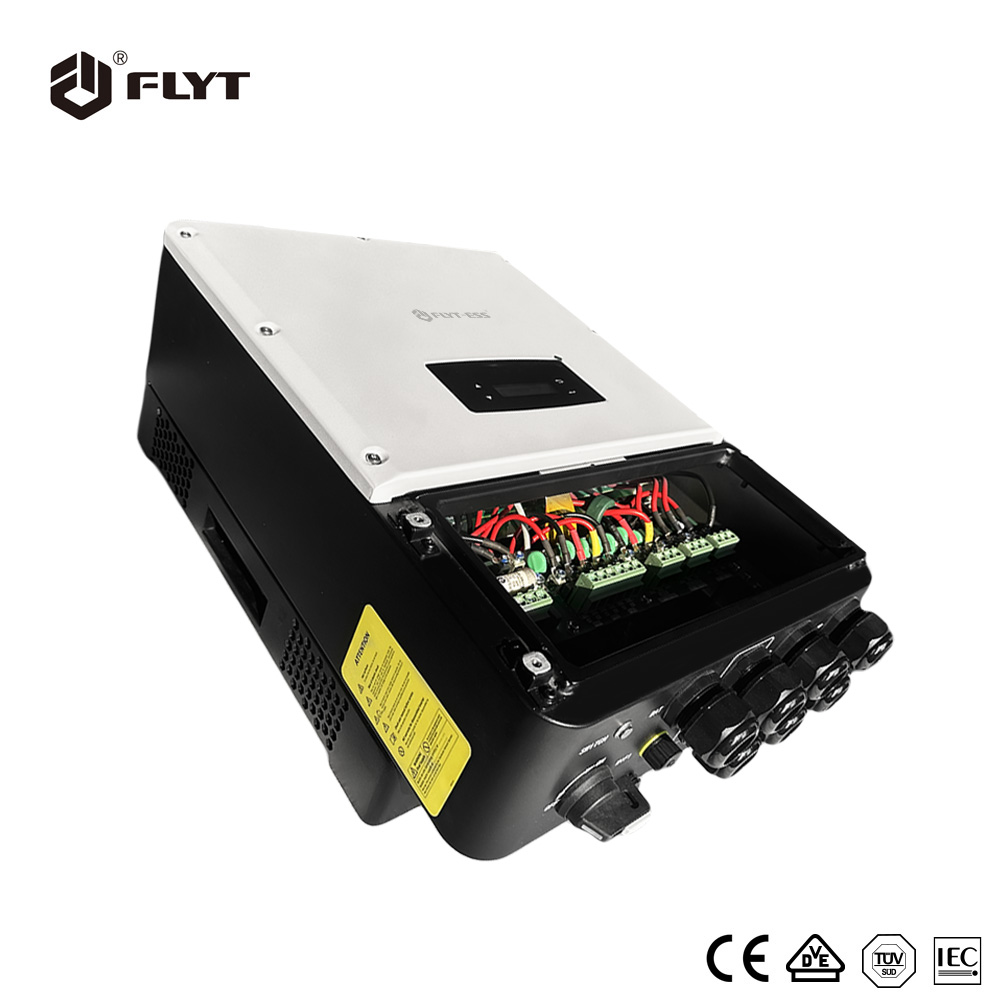

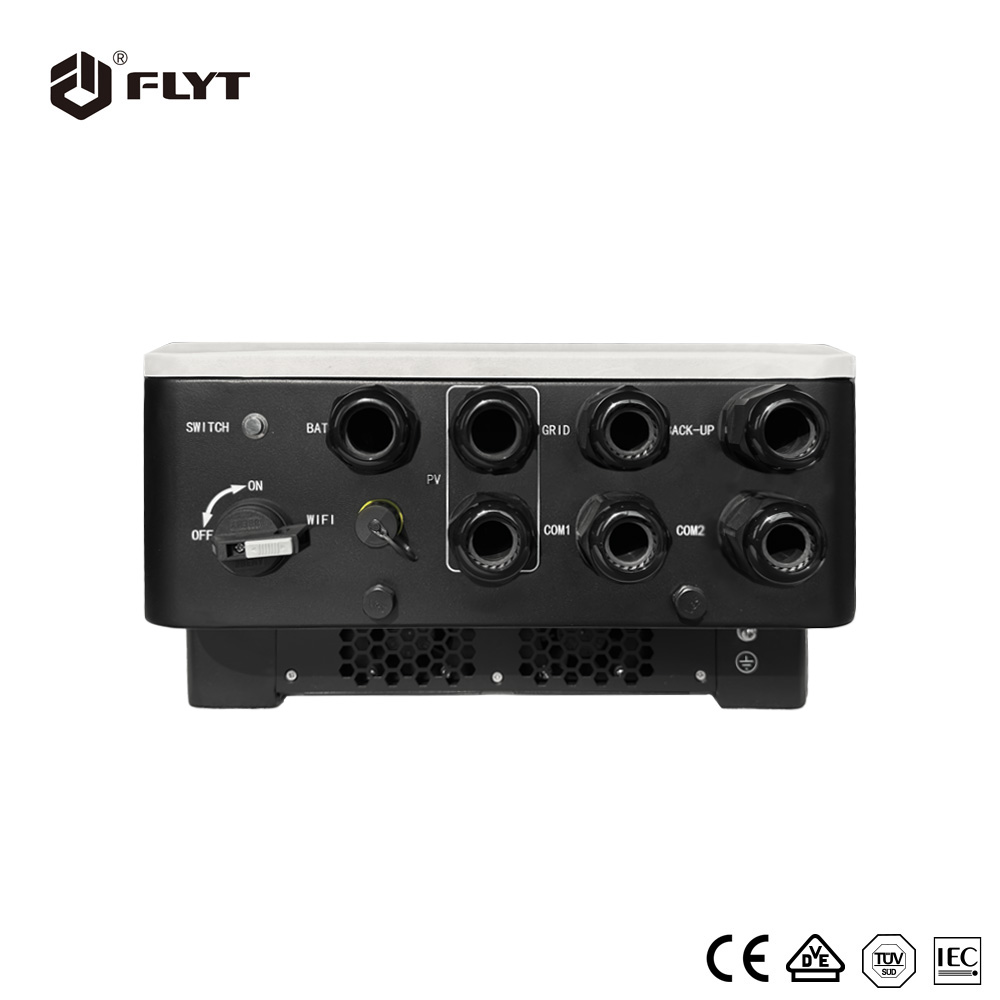

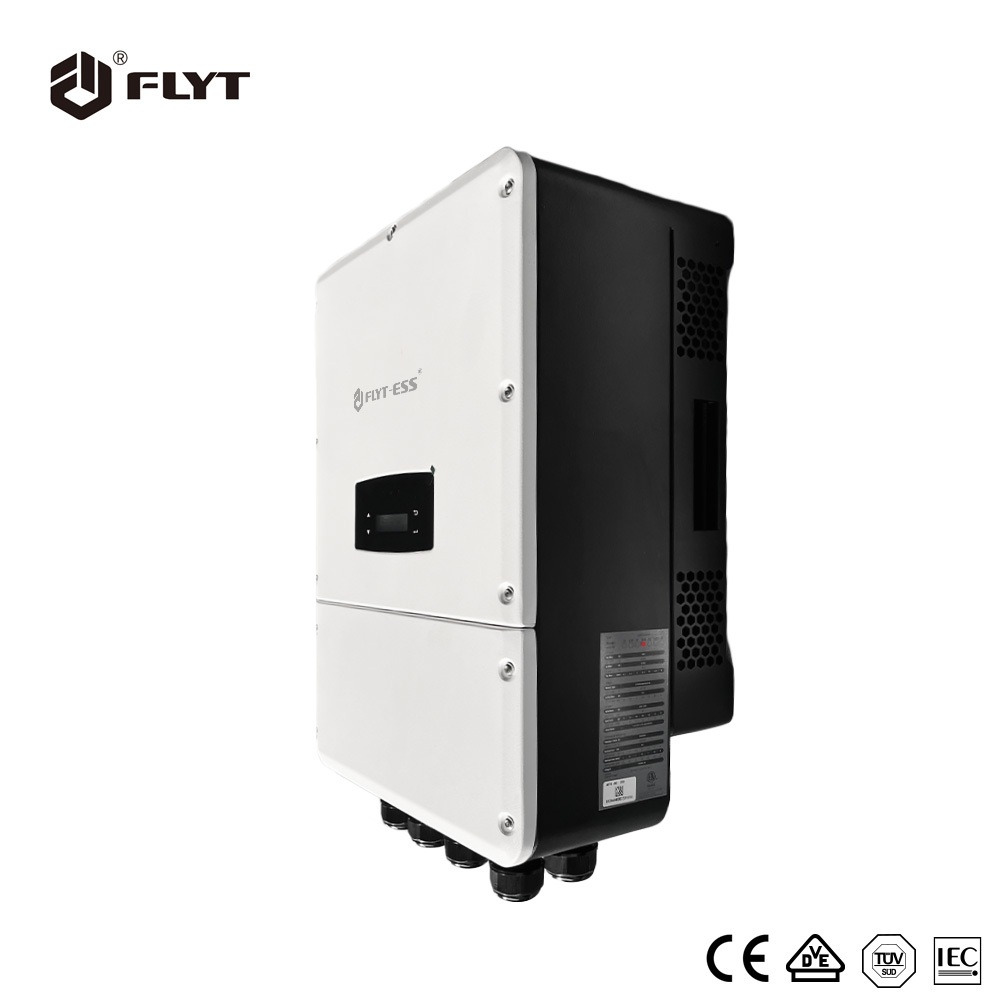

The FLYT-DH series is a split-phase hybrid inverter. The FLYT-DH solar inverter can be equipped with high-voltage (80 ~ 550v) lithium-ion batteries. Seamlessly adapts to complex residential roofs. Equipped with fast battery charging, it is fully capable of powering large loads (from 3kW up to 9.6 kW) in standby mode.
FLYT-DH's technical standards comply with the relevant safety regulations in the United States and are applicable to the United States, Canada, Mexico. Including arc fault circuit interrupters and rapid shutdown. FLYT-DH split phase hybrid inverter not only provides efficiency and reliability, but also safety.
| PV Input | FLYT3K-DH | FLYT3.6K-DH | FLYT4K-DH | FLYT4.6K-DH | FLYT5K-DH | FLYT5.5K-DH | FLYT6K-DH | FLYT7K-DH | FLYT7.6K-DH | FLYT8K-DH | FLYT8.6K-DH | FLYT9.6K-DH |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Input Power (kW) | 4.5 | 5.4 | 6.0 | 6.9 | 7.5 | 8.3 | 9.0 | 10.5 | 11.4 | 12 | 12.9 | 15 |
| Max. PV Voltage (V) | 600 | |||||||||||
| MPPT Range (V) | 80-550 | |||||||||||
| Normal Voltage (V) | 360 | |||||||||||
| Startup Voltage (V) | 100 | |||||||||||
| Max. Input Current (A) | 15.5*2 | 15.5*3 | ||||||||||
| Max. Short Current (A) | 26.0*2 | 26.0*3 | ||||||||||
| No. of MPP Tracker / No. of PV String | 2/2 | 3/3 | ||||||||||
| Battery | ||||||||||||
| Max. Charge/Discharge Power (kW) | 4.5/4.5 | 5.4/5.4 | 6.0/6.0 | 6.9/6.9 | 7.5/7.5 | 8.3/8.3 | 9.0/9.0 | 10.5/10.3 | 11.4/11.3 | 11.5/10.3 | 11.5/10.3 | 11.5/10.3 |
| Max. Charge/Discharge Current (A) | 50 | |||||||||||
| Battery Normal Voltage (V) | 230 | |||||||||||
| Battery Voltage Range (V) | 80 - 495 | |||||||||||
| Battery Type | Li-ion / Lead-acid | |||||||||||
| AC Grid | ||||||||||||
| Max Continuous Power (kVA) | 3.0 | 3.6 | 4.0 | 4.6 | 5.0 | 5.5 | 6.0 | 7.0 | 7.6 | 8.0 | 8.6 | 9.6 |
| Max Continuous Current (A) | 15 | 17.5 | 19.5 | 22.5 | 24.5 | 27 | 29 | 34.0 | 37 | 39 | 41.5 | 46.5 |
| Nominal Grid Voltage (V) | 211 to 264 @240/183 to 229 @208 | |||||||||||
| Nominal Grid Frequency (Hz) | 60Hz | |||||||||||
| Output Power Factor | 1 default (Adjustable from 0.8 leading to 0.8 lagging) | |||||||||||
| Current THD (%) | < 3 | |||||||||||
| Gen Input & AC Back-up | FLYT3K-DH | FLYT3.6K-DH | FLYT4K-DH | FLYT4.6K-DH | FLYT5K-DH | FLYT5.5K-DH | FLYT6K-DH | FLYT7K-DH | FLYT7.6K-DH | FLYT8K-DH | FLYT8.6K-DH | FLYT9.6K-DH |
| Max Continuous Current (A) | 15 | 17.5 | 19.5 | 22.5 | 24.5 | 27 | 29 | 34 | 37 | 39 | 41.5 | 46.5 |
| Max Continuous Power (kVA) | 3.0 | 3.6 | 4.0 | 4.6 | 5.0 | 5.5 | 6.0 | 7.0 | 7.6 | 8.0 | 8.6 | 9.6 |
| Max Peak Current (A) (10min) | 18.8/21.7 | 22.5/26 | 25/28.9 | 28.8/33.2 | 31.3/36.1 | 34.6/39.9 | 37.5/43.3 | 43.8/49.5 | 47.5/49.5 | 47.5/49.5 | 47.5/49.5 | 47.5/49.5 |
| Max Peak Power (kVA) (10min) | 4.5/4.5 | 5.4/5.4 | 6.0/6.0 | 6.9/6.9 | 7.5/7.5 | 8.3/8.3 | 9.0/9.0 | 10.5/10.3 | 11.4/10.3 | 11.5/10.3 | 11.5/10.3 | 11.5/10.3 |
| Nominal AC Voltage L-L(V) | 240/208 | |||||||||||
| Nominal AC Voltage L-O (V) | 120/104 | |||||||||||
| Nominal AC Frequency (Hz) | 60Hz | |||||||||||
| Switching Time (s) | < 10ms | |||||||||||
| Voltage THD (%) | < 3 | |||||||||||
| Efficiency | ||||||||||||
| CEC Efficiency (%) | 97.0% | |||||||||||
| Max. Efficiency (%) | 97.6% | |||||||||||
| PV to Bat. Efficiency (%) | 98.1% | |||||||||||
| Bat. between AC Efficiency (%) | 96.8% | |||||||||||
| Protection | FLYT3K-DH | FLYT3.6K-DH | FLYT4K-DH | FLYT4.6K-DH | FLYT5K-DH | FLYT5.5K-DH | FLYT6K-DH | FLYT7K-DH | FLYT7.6K-DH | FLYT8K-DH | FLYT8.6K-DH | FLYT9.6K-DH |
| PV Reverse Polarity Protection | Yes | |||||||||||
| Bat. Reverse Polarity Protection | Yes | |||||||||||
| Over Current/Voltage Protection | Yes | |||||||||||
| Anti-Islanding Protection | Yes | |||||||||||
| AC Short Circuit Protection | Yes | |||||||||||
| Residual Current Detection | Yes | |||||||||||
| Ground Fault Monitoring | Yes | |||||||||||
| Insulation Resister Detection | Yes | |||||||||||
| PV Arc Detection | Yes | |||||||||||
| Rapid Shut Down | Yes | |||||||||||
| Protection Degree | IP65 / NEMA4X | |||||||||||
| General Data | FLYT3K-DH | FLYT3.6K-DH | FLYT4K-DH | FLYT4.6K-DH | FLYT5K-DH | FLYT5.5K-DH | FLYT6K-DH | FLYT7K-DH | FLYT7.6K-DH | FLYT8K-DH | FLYT8.6K-DH | FLYT9.6K-DH |

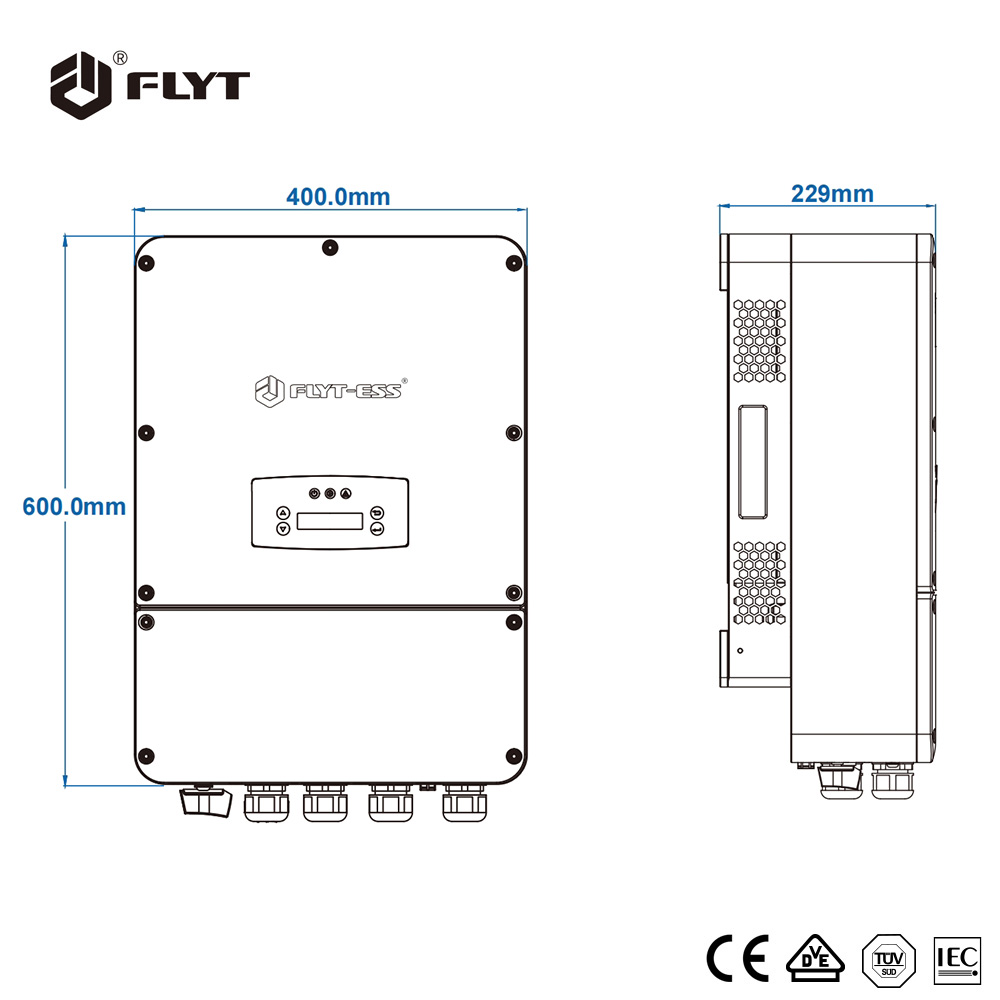

| Dimensions (W x H x D, mm) | 400*600*229mm / 15.7 *23.6 * 9.0in | |||||||||||
| Weight (kg) | 25kg / 55lbs | |||||||||||
| Topology | Transformerless | |||||||||||
| Cooling | Natural Convection | Intelligent Fan | ||||||||||
| Relatively Humidity | 0 - 100 % | |||||||||||
| Operating Temperature Range (°C) | - 25 to 60 ℃ / -77 to 140 ℉ | |||||||||||
| Operating Altitude (m) | < 4000m / ＜13123ft | |||||||||||
| Noise Emission (dB) | < 25 | < 40 | ||||||||||
| Standby Consumption (W) | < 10 | |||||||||||
| Mounting | Wall Bracket | |||||||||||
| Communication with RSD | SUNSPEC | |||||||||||
| Display & Communication Interfaces | LCD, LED, RS485, CAN, Wi-Fi, 4G | |||||||||||
| Certification & Approvals | UL1741 SA, UL1741, UL1699B, UL 1998, IEEE1547, IEEE1547A, IEEE1547.1, CSA22.2 No.107, Rule21, HECO Rule 14 | |||||||||||
| EMC | FCC part15 CLASS B | |||||||||||
