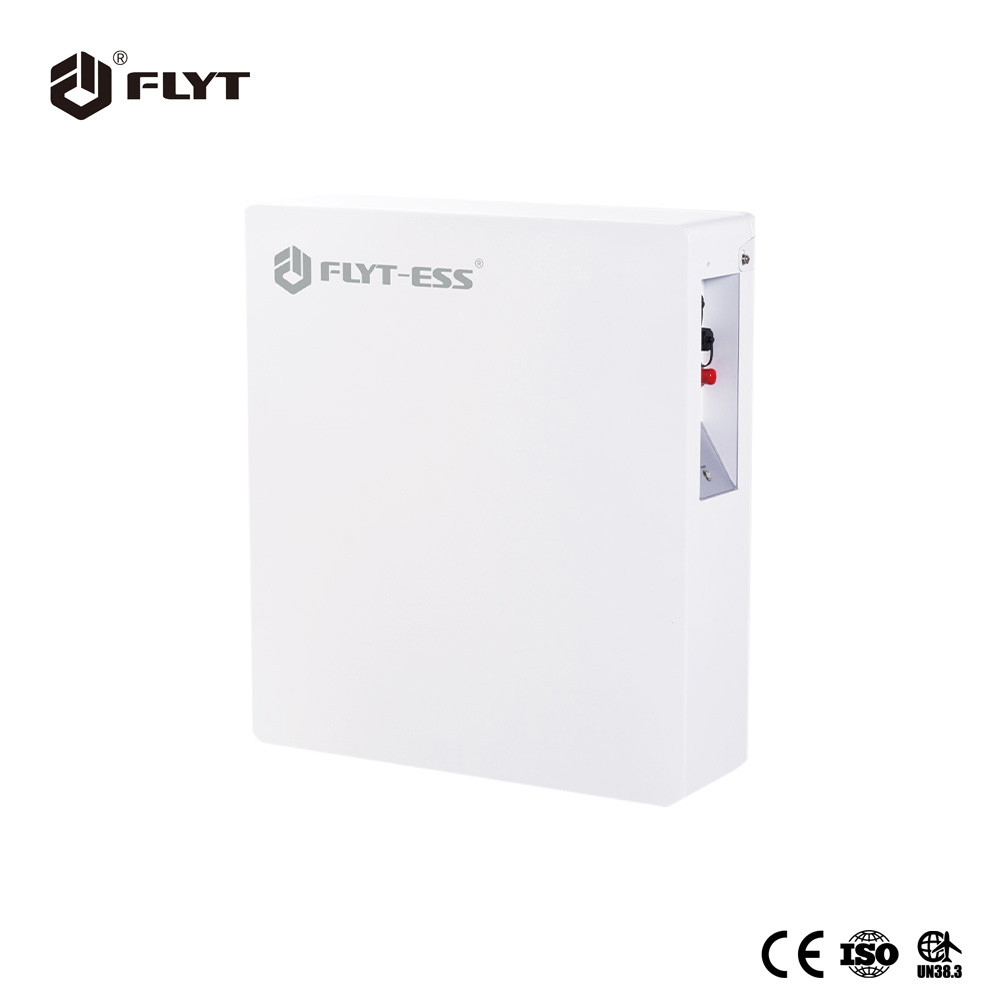

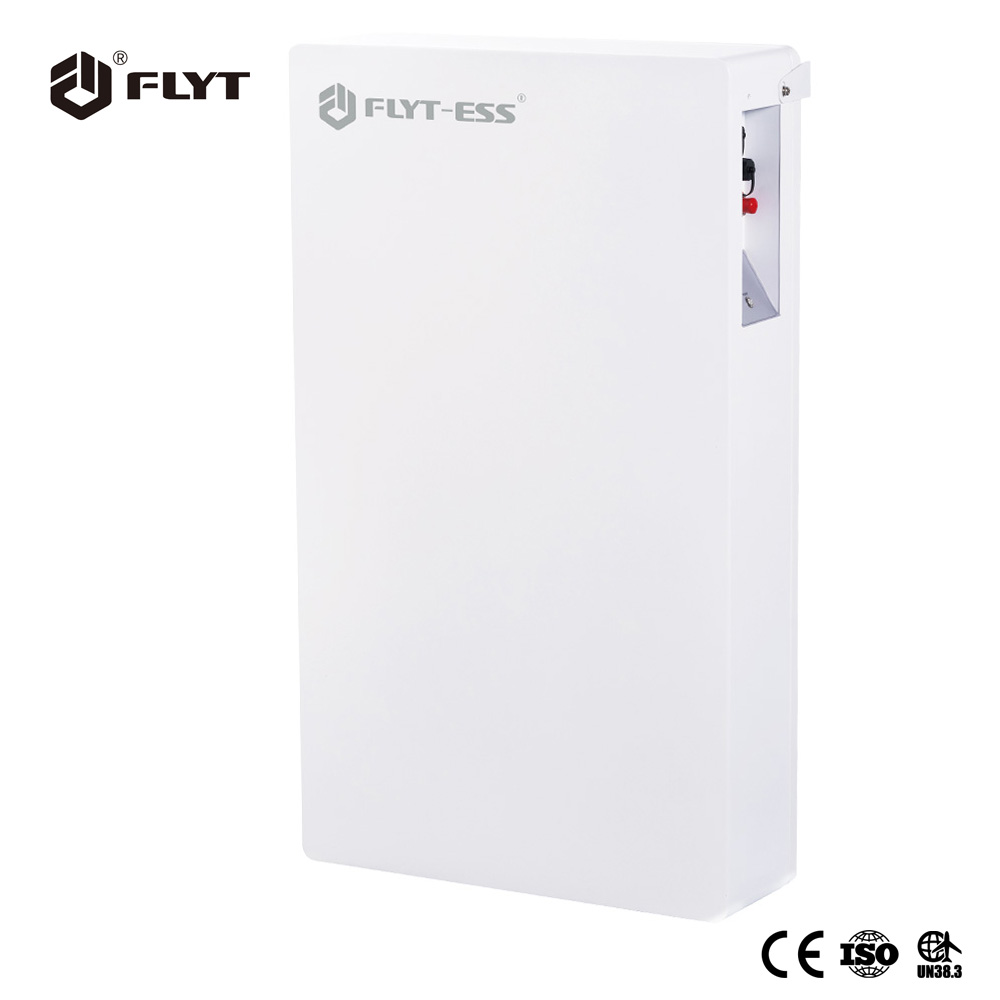

The wall-mounted energy storage battery is a promising new technology that brings convenience and sustainability to households. With its low-voltage design and various specifications, it provides a flexible solution for households to manage their energy usage and reduce their carbon footprint.

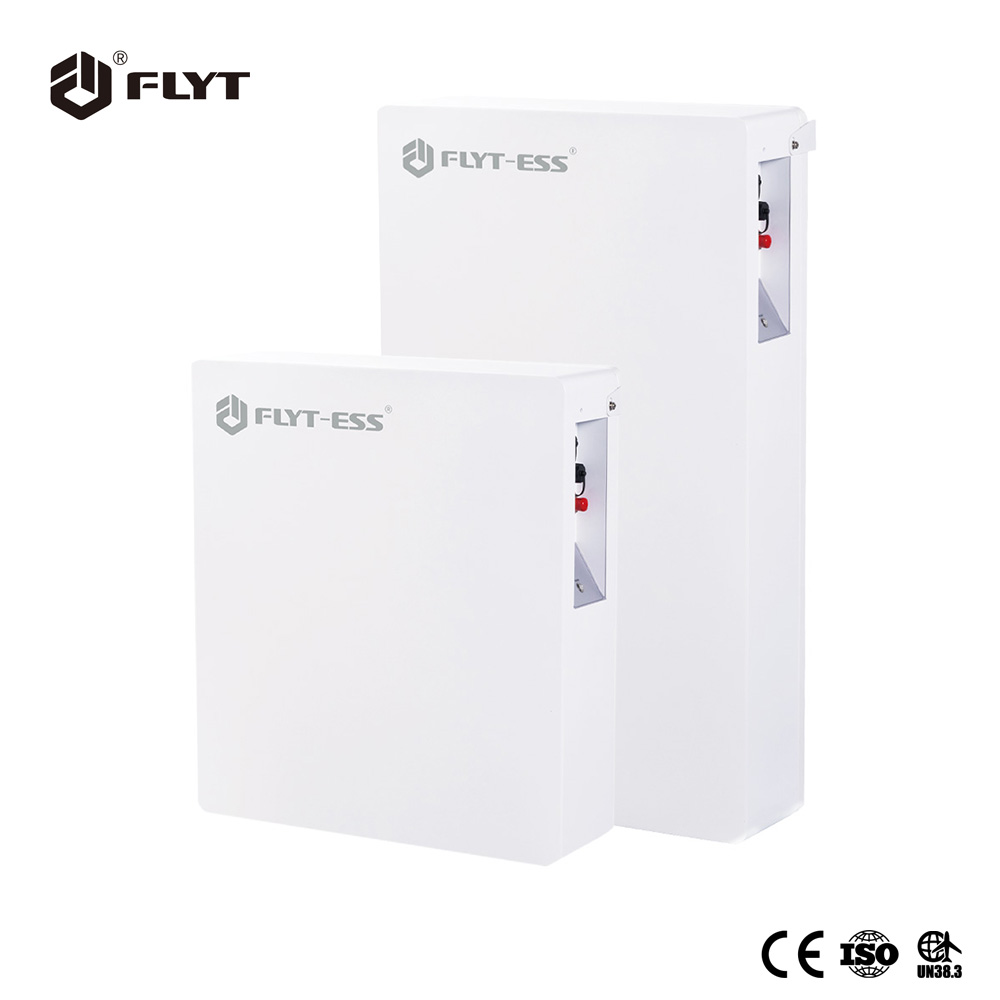

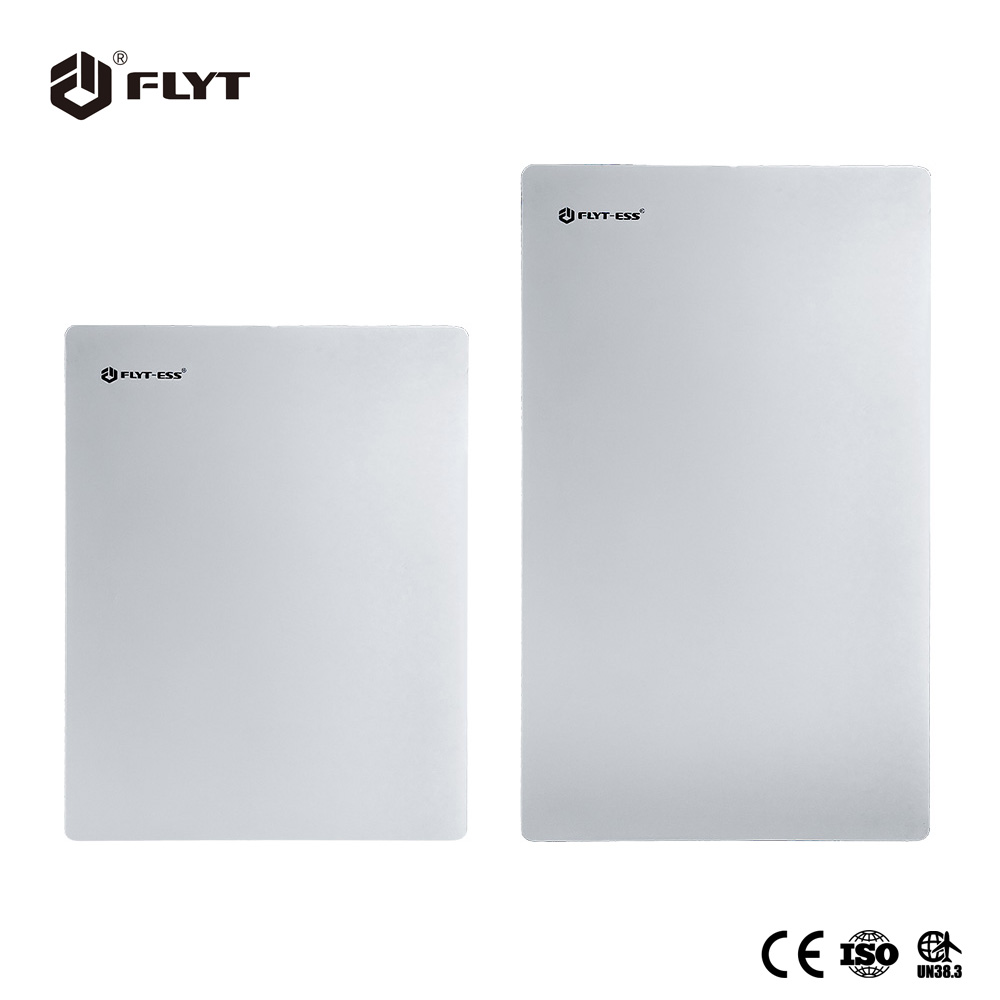

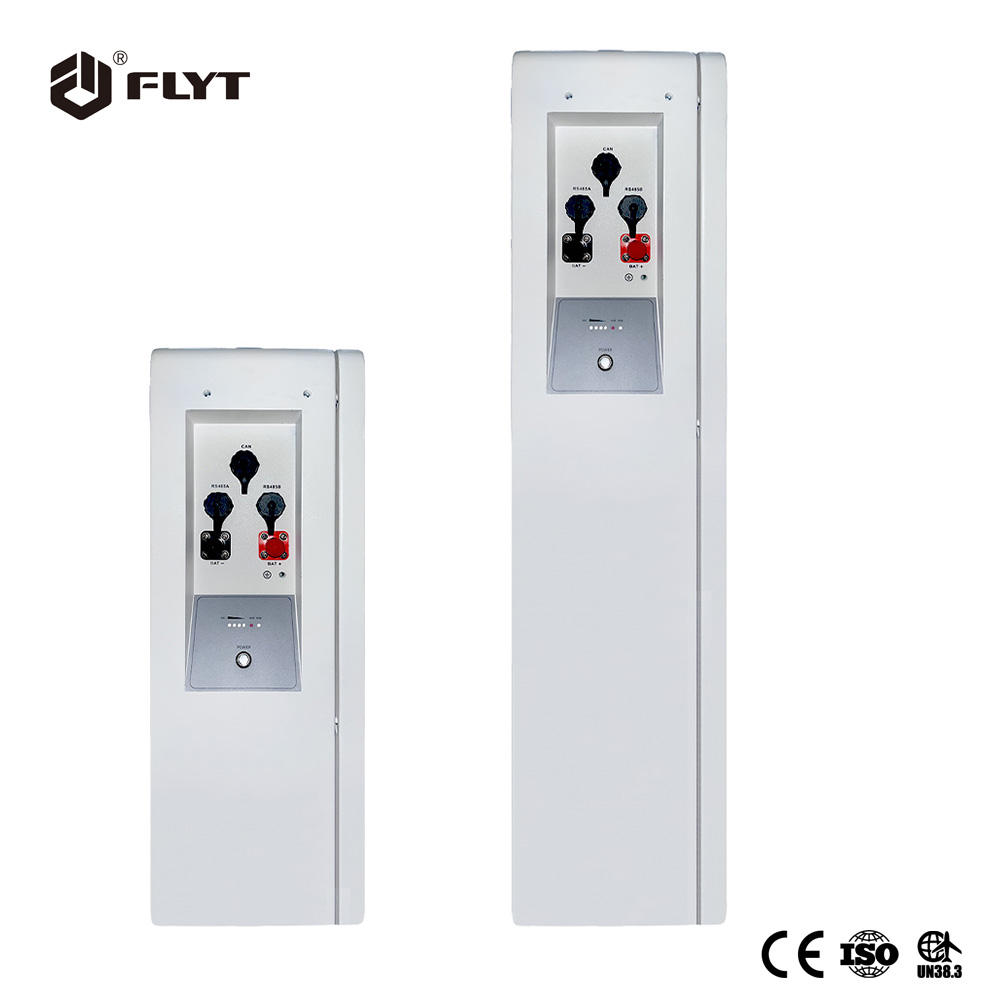

The 5kWh and 10kWh specifications are suitable for different household needs, and the option to connect them in parallel provides even greater flexibility. The use of A+ grade high-quality brand cells ensures that the battery is reliable and efficient, while its ability to reach a maximum discharge depth of 92% and more than 6,000 cycles means it will last for many years.
This wall-mounted battery is a superb addition to any home solar storage system. With its top-of-the-line features, such as its 10-year warranty and compatibility with most brands of inverters, it guarantees an unparalleled experience for its users. It is the perfect choice for those who value reliability and efficiency. This battery is also incredibly easy to configure, making it accessible to everyone regardless of their technical expertise. With this wall-mounted battery, users can rest assured that they will be able to enjoy all the benefits of solar energy without any hassle. It is a shining example of how technology can improve our lives and our environment.
Module Type | LFP 5 kWh Low Voltage | LFP 10 kWh Low Voltage |
---|---|---|
Total Energy (ideal conditions) | 5 kWh | 10 kWh |
Usable Energy (ideal conditions) | 4.6 kWh | 9.2 kWh |
Nominal Power(charge and discharge) | 3 kW | 4.6 kW |
Peak Power (surge discharge only) | 7 kW for 3 seconds | 10 kW for 3 seconds |
Constant Direct Current Discharge | 100 A | 100 A |
Direct Current Voltage | 48 V to 56 V | 48 V to 56 V |
Direct Current Nominal Voltage | 51.2 V | 51.2 V |
Nominal Current | 60 A | 100 A |
Maximum Charge Direct Current Voltage | 59.2 V +/- 0.5 V | 59.2 V +/- 0.5 V |
Weight in kg | 65 kg | 125 kg |
Dimensions in mm (each comes in two sizes) | 490(550) x 136(166) x 650(700) mm | 585(645) x 136(166) x 940(995) mm |
Safety | CE MSDS UN38.3 | |
Maximum recommended DOD | 90% | |
Installation Environment | indoor and outdoor rated | |
Recommended Temperature Range | 0℃ to 45℃ | |
Operating Temperature Range | -10℃ to 50℃ | |
Operating Humidity (RH) | from 4% to 100% (non-condensing) | |
Pollution Degree Rating | 3 | |
Over Voltage Category | OVC II | |
Battery Cooling Method | Passive Natural Cooling | |
Case Material | Metal and Plastic | |
Ingress Protection Rating | IP 65 | |
Protective Classes (Appliance Classes) | Class I | |
Maximum Number in Parallel or Series | 16 | |
Warranty | 10 years | |
Life Span | more than 15 years | |

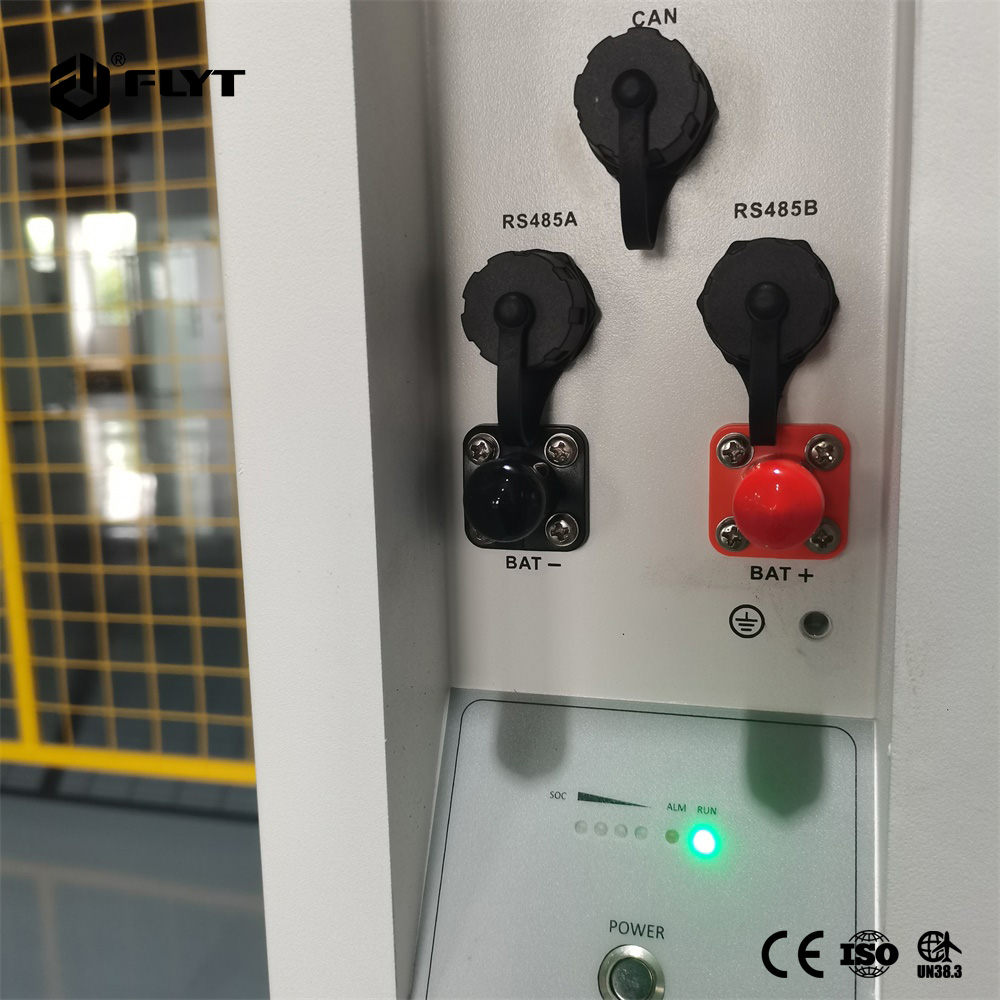

Communication | CAN Bus and RS-485 | |
Protection Mode | Triple Hardware Protection | |
Battery Protection | Over-current / Over-voltage / Short-circuit / Under-voltage | |
Hazardous Material Classification | 9 |
