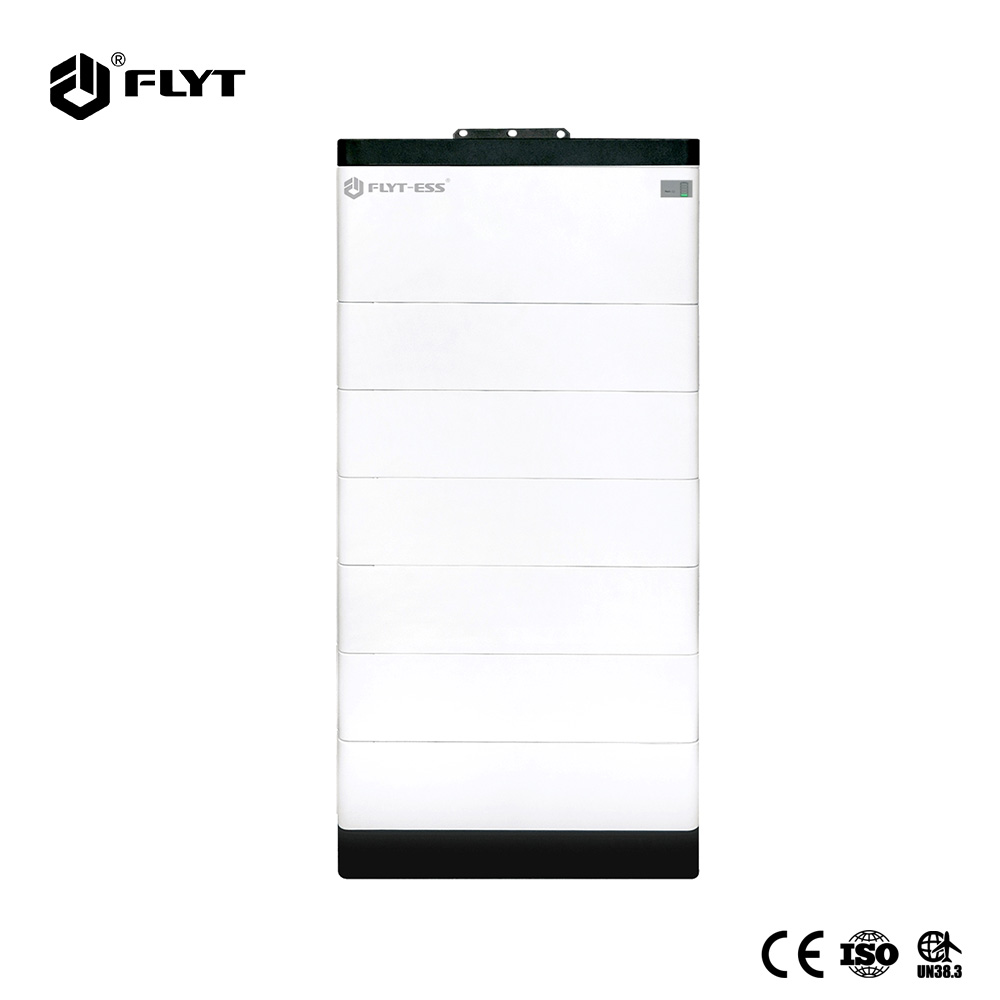

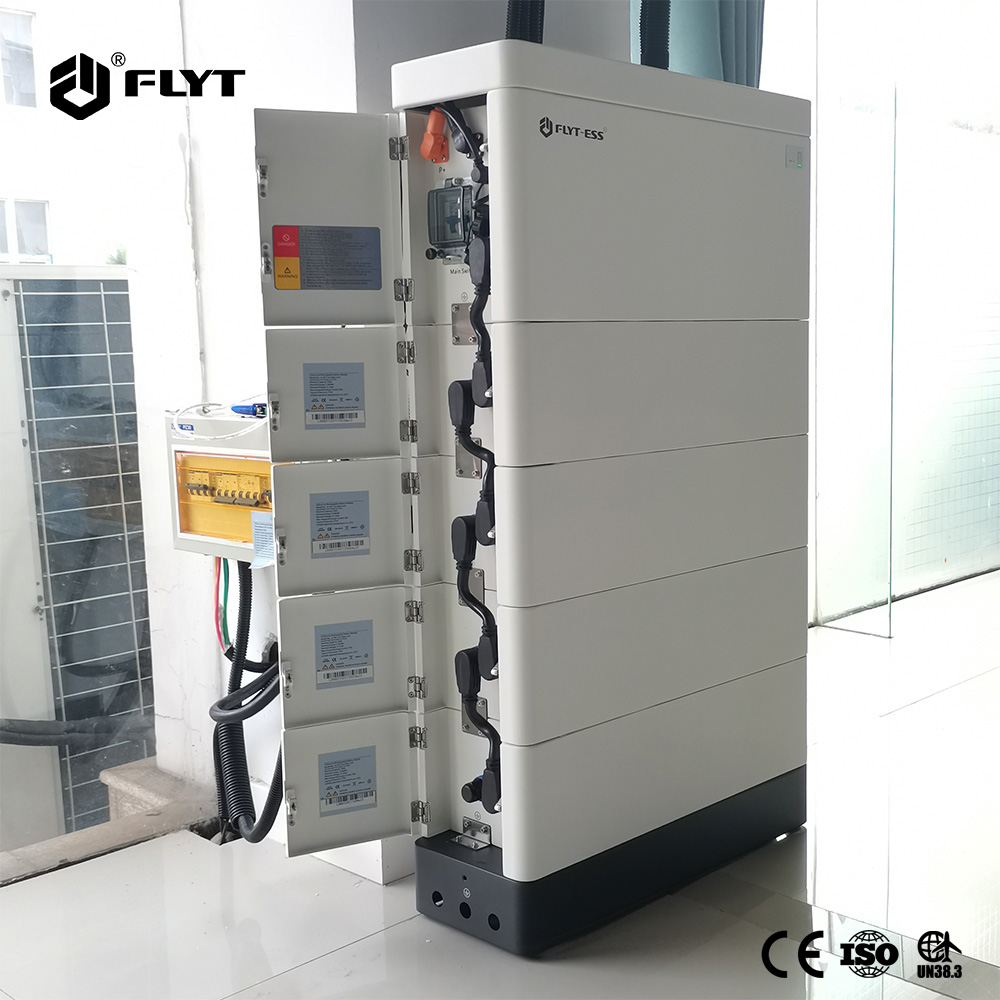

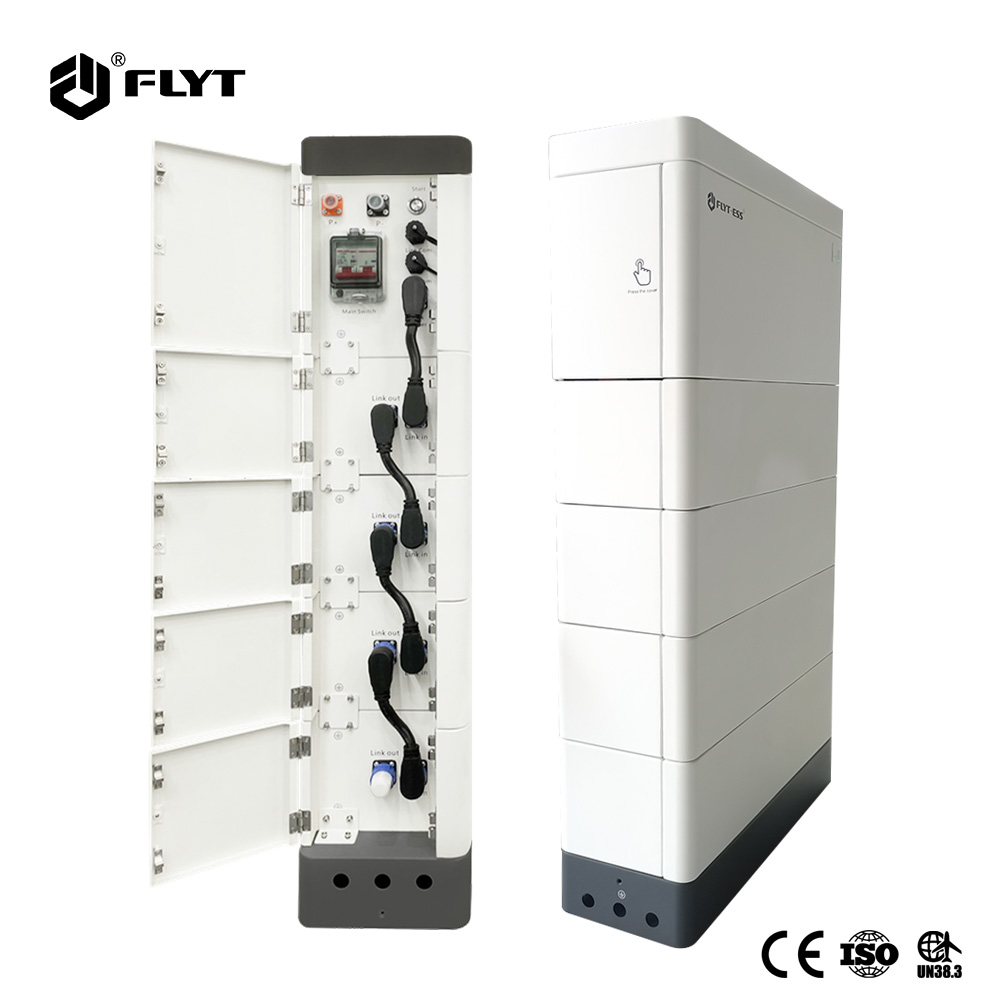

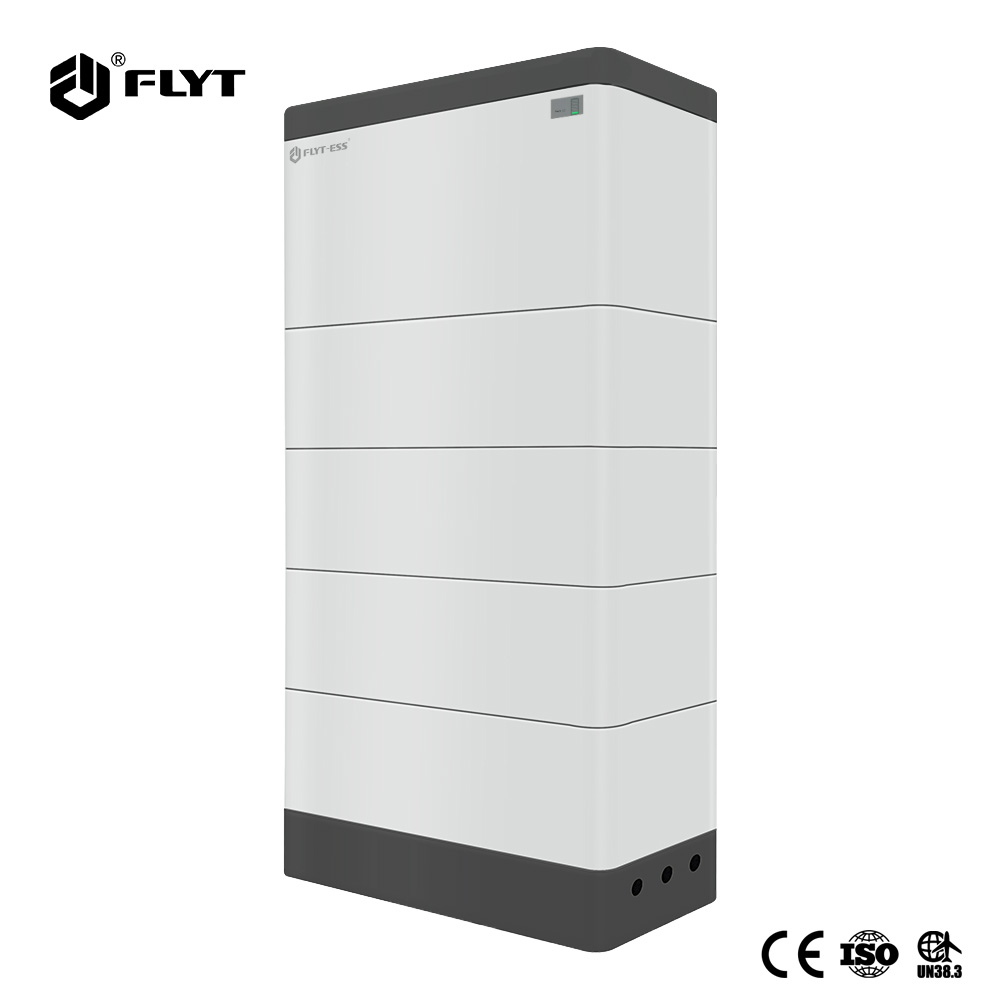

The household high-voltage stacked Energy Storage Battery is an innovative solution that brings a lot of benefits to the consumers. With its simple and beautiful appearance, it fits perfectly in any home without causing any trouble or mess. Moreover, the absence of exposed wiring makes it safer for children and pets to be around.

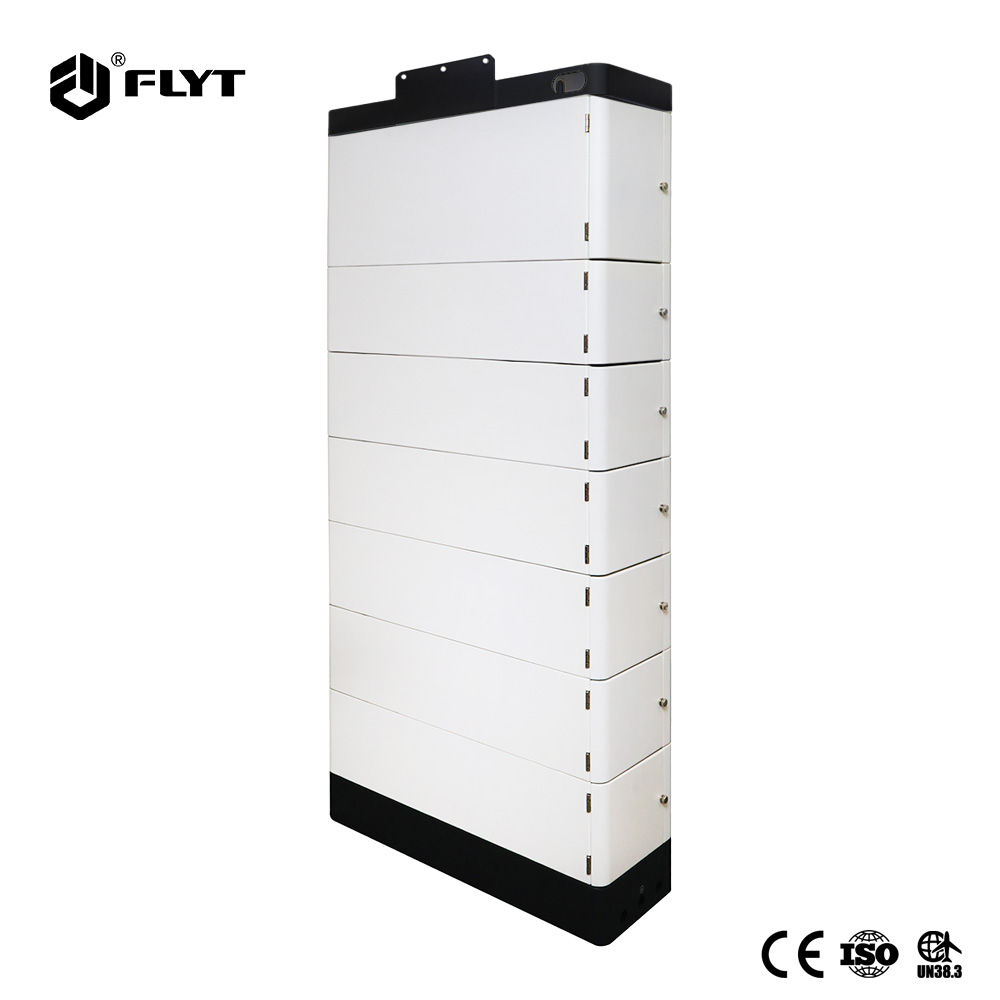

This type of battery is designed to take up less space in your home, which means that installation is now easier than ever before. Thanks to its 21cm ultra-slim design, you can place it anywhere you want without having to worry about finding a suitable spot. This makes it a perfect choice for people who are looking for a space-saving solution.

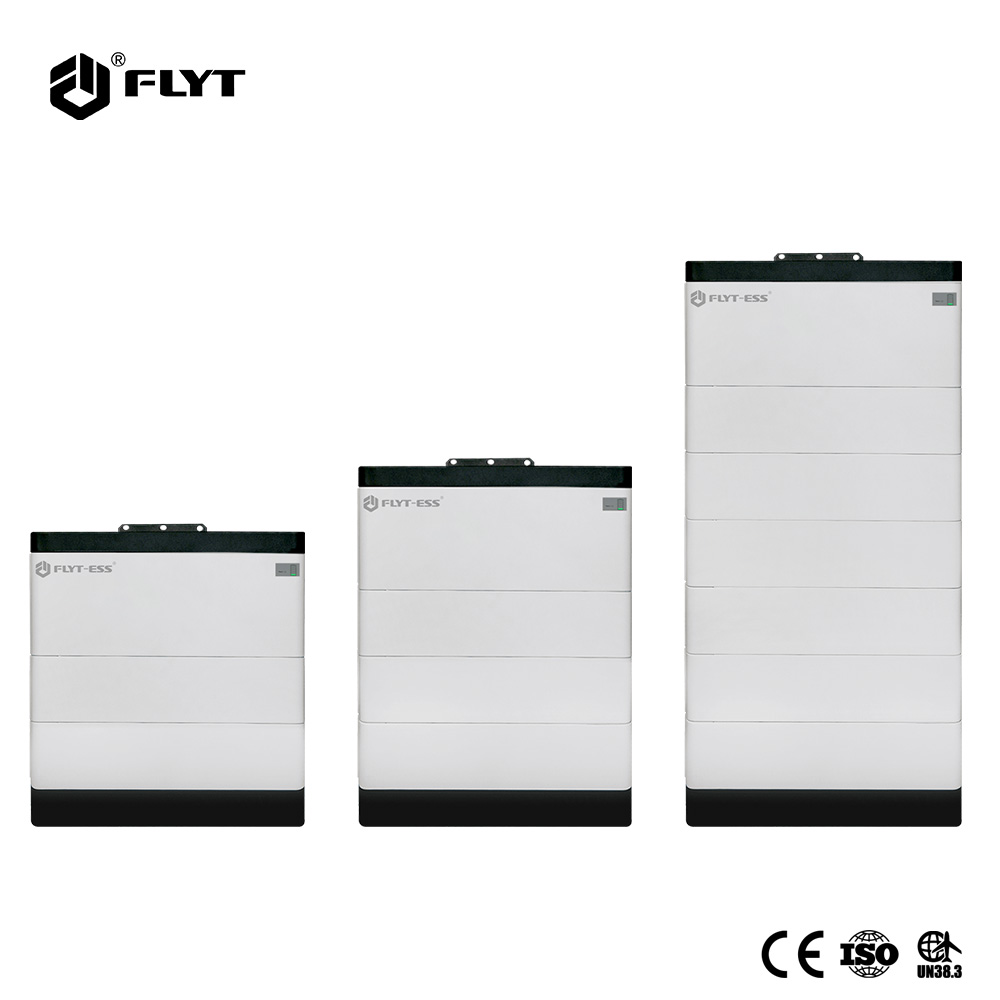

The modular design of the high-voltage stacked battery is another fantastic feature that allows for even more flexibility. Each battery pack comes with a high-voltage chassis that can connect three to ten packs, creating a total of 7.58kWh to 25.6kWh of energy. This means that you can customize the battery to fit your needs, making it an even more efficient solution for consumers.
It provides a safe and efficient high-voltage output of 153.6V to 512V that is perfect for charging new energy vehicles. With this technology, we can say goodbye to traditional fossil fuel-powered vehicles and embrace a greener and more sustainable future.
Overall, the household high-voltage stacked Energy Storage Battery is an excellent choice for anyone looking for a safe, efficient, and easy-to-install energy storage solution. Its positive features are numerous and make it an ideal solution for any home. So if you're looking for a reliable and innovative energy storage battery, this is definitely one to consider!
Model Parameters | FLYT-BST-Hbox2.56kWh |
---|---|
Nominal Voltage (Vdc) | 51.2 Vdc |
Nominal Capacity (Wh) | 2560 Wh |
Working Voltage Range (Vdc) | 129.6 Vdc to 516.6 Vdc |
Charge Voltage (Vdc) | 56.16 Vdc |
Nominal Charge / Discharge Current (A) | 25 A |
Maximum Charge / Discharge Current (A) | 50 A |
Peak Current (A) | 100 A for 3 seconds |
Series Connection | 3 to 10 batteries |
Charge Cycle Life | 6000 charges at 80% DOD (ideal conditions: 25 degrees Celsius +/- 0.5 degrees Celsius) |
Dimensions and Weight | |
Power Module | 600 x 210 x 250 mm at 14 kg |
Battery Module | 600 x 210 x 160mm at 27 kg |
Base Module | 600 x 210 x 90mm at 5 kg |
Top Cap Module | 600 x 210 x 50 mm at 2.5 kg |
IP Rating | IP65 |
Installation | Stacked |
Working Enviroment | |
Charge Working Temperature (degrees Celsius) | from 0 degrees Celsius to 55 degrees Celsius |
Discharge Working Temperature (degrees Celsius) | from 20 degrees Celsius to 60 degrees Celsius |
Altitude | up to 2500 meters above sea level |
Humidity | 5% to 95% RH (without water condensing) |
Communication | RS 485 and CAN |
Display | SOC status indicator, LED indicator |
Certifications | CB, IEC-62619, CE-EMC, CE-GPSD, UKCA, UL-1973, UL-9540A, EN-62040, IEC-62040; UN38.3, MSDS |
Model | BST-7.68kWh | BST-10.24kWh | BST-12.8kWh | BST-15.36kWh | BST-17.92kWh | BST-20.48kWh | BST-23.04kWh | BST-25.6kWh |
---|---|---|---|---|---|---|---|---|
Quantity of battery | 3pcs | 4pcs | 5pcs | 6pcs | 7pcs | 8pcs | 9pcs | 10pcs |
Energy Capacity | 7.68kWh | 10.24kWh | 12.8kWh | 15.36kWh | 17.92kWh | 20.48kWh | 23.04kWh | 25.6kWh |
Nominal Voltage | 153.6V | 204.8V | 256V | 307.2V | 358.4V | 409.6V | 460.8V | 512V |
Size | 60*21*87cm | 60*21*103cm | 60*21*119cm | 60*21*135cm | 60*21*151cm | 60*21*167cm | 60*21*183cm | 60*21*199cm |
Weight | 103kg | 130kg | 157kg | 184kg | 211kg | 238kg | 265kg | 292kg |
